DC Power Jack Connector
Specification
| Measurement | ￠2.5/￠2.0 |
| Circuits | - |
| Current Rating | 0.5A AC DC |
| Voltage Rating | 50V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 30mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

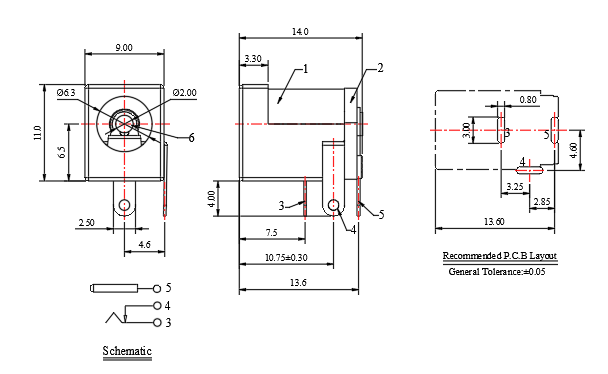

- DCJK Series ￠2.0 DC Power Jack

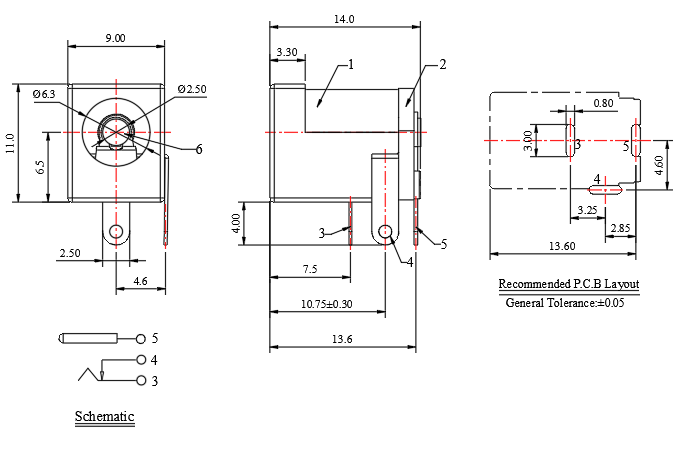

- DCJK Series ￠2.5 DC Power Jack
| Product | DCJKP |
| Circuits | - |
| Material | Polyester UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N DCJKP20H001 |
| Options | - |
| Other Informaton | - |
| Product | DCJKP |
| Circuits | - |
| Material | Polyester UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N DCJKP25H001 |
| Options | - |
| Other Informaton | - |
