5.08mm (.200″) Wire to Wire Connector
Specification
| Measurement | 5.08mm (.200") |
| Circuits | 4 circuits |
| Current Rating | 5A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1500V AC/min. |
Standards
Product Details

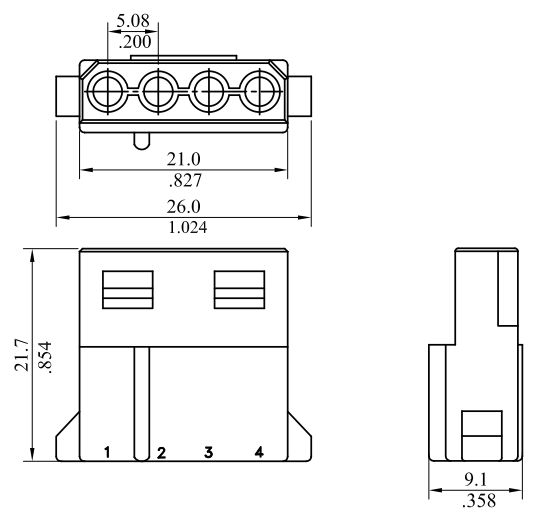

- 5200 Series 5.08mm (.200") Housing

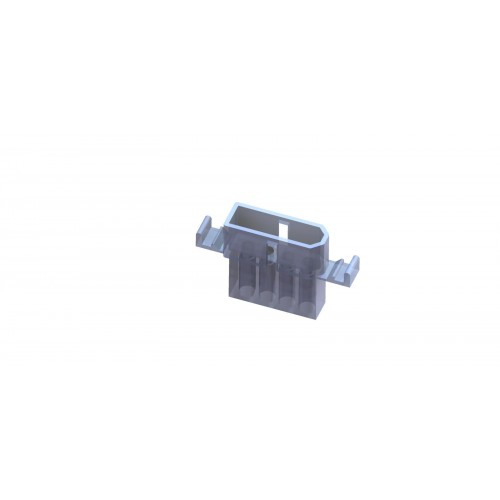

- 5200 Series 5.08mm (.200") Housing
- 5213T Crimping Terminal
- 5214T Crimping Terminal
| Product | 5200S |
| Circuits | 4 circuits |
| Material | Thermoplastic UL94V-2 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5200S04F000 |
| Options | - |
| Other Informaton | Mates with 5214 terminal |
| Product | 5200S |
| Circuits | 4 circuits |
| Material | Thermoplastic UL94V-2 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5200S04M000 |
| Options | - |
| Other Informaton | Mates with 5213 terminal |
| Product | 5213T |
| Circuits | - |
| Material | Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5213TPB0SH0 |
| Options | - |
| Other Informaton | Mates with 5200S |
| Product | 5214T |
| Circuits | - |
| Material | Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5214TPB0SH0 |
| Options | - |
| Other Informaton | Mates with 5200S AWG 16~22 Tin Plated 5K Pcs/Reel |
