2.0mm (.079″) Shrouded Connector
2.0mm (.079″) Shrouded Connector
Specification
| Measurement |
2.00mm (.079") |
| Circuits |
6~68 circuits |
| Current Rating |
1A AC DC
|
| Voltage Rating |
250V AC DC |
| Temperature rating: |
-25℃~+85℃
|
| Contact resistance |
30mΩ max. |
| Insulation resistance |
1000MΩ min. |
| Withstanding voltage |
500V AC/min. |
Product Details
- 2046 Series 2.00mm(.079")Shrouded Header
- 2046 Series 2.00mm(.079")Shrouded Header
| Product |
2046P |
| Circuits |
6~68 circuits |
| Material |
PA6T UL94V-0/Brass |
| Material Options |
-
|
| Color Options |
- |
| Formula |

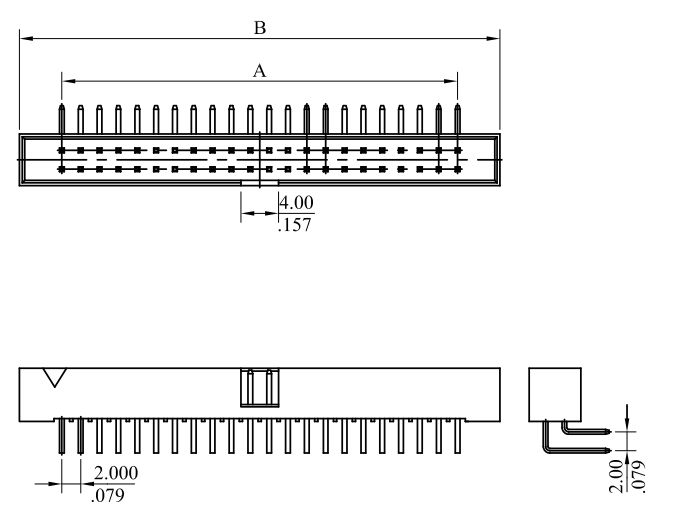

P/N 2046P**H*T0 |
| Options |
- |
| Other Informaton |
Mates with 2045S
|
| Product |
2046P |
| Circuits |
6~68 circuits |
| Material |
PA6T UL94V-0/Brass |
| Material Options |
-
|
| Color Options |
- |
| Formula |
P/N 2046P**V*T0 |
| Options |
- |
| Other Informaton |
Mates with 2045S
|
