1.27mm(.050″) IDC Connector
Specification
| Measurement | 1.27mm (.050") |
| Circuits | 4~24 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 30V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

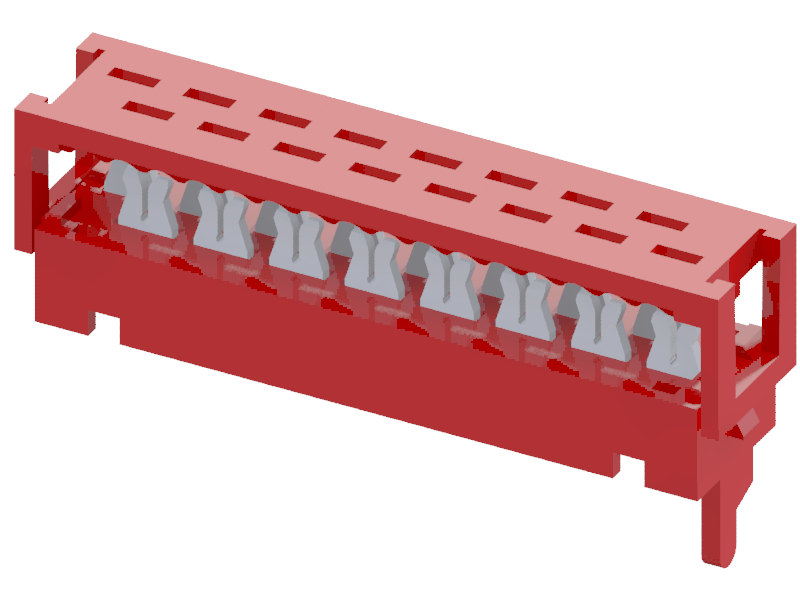

- 1293 Series 1.27mm(.050") IDC Connector Male on Wire Type
- 1293 Series 1.27mm(.050") IDC DIP Connector

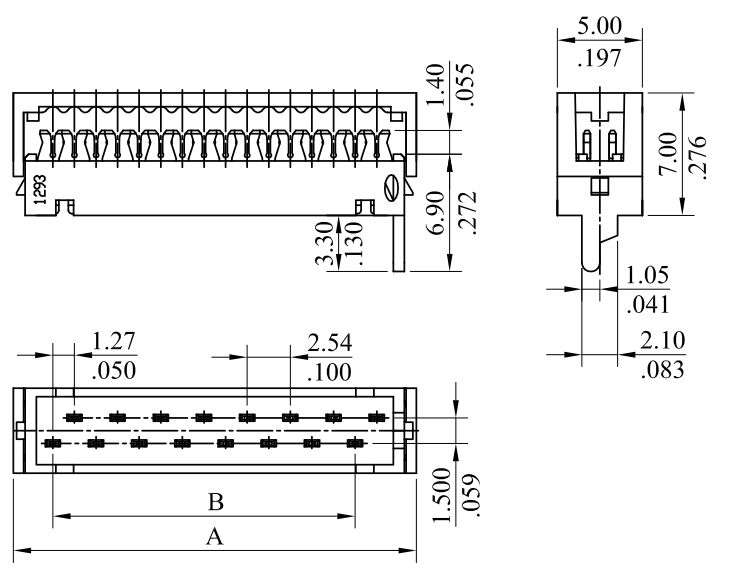

| Product | 1293S |
| Circuits | 6,10,12,14,16 circuits |
| Material | Polyester/Copper Alloy |
| Material Options | - |
| Color Options | Red |
| Formula | P/N 1293S**0000 |
| Options | - |
| Other Informaton | - |

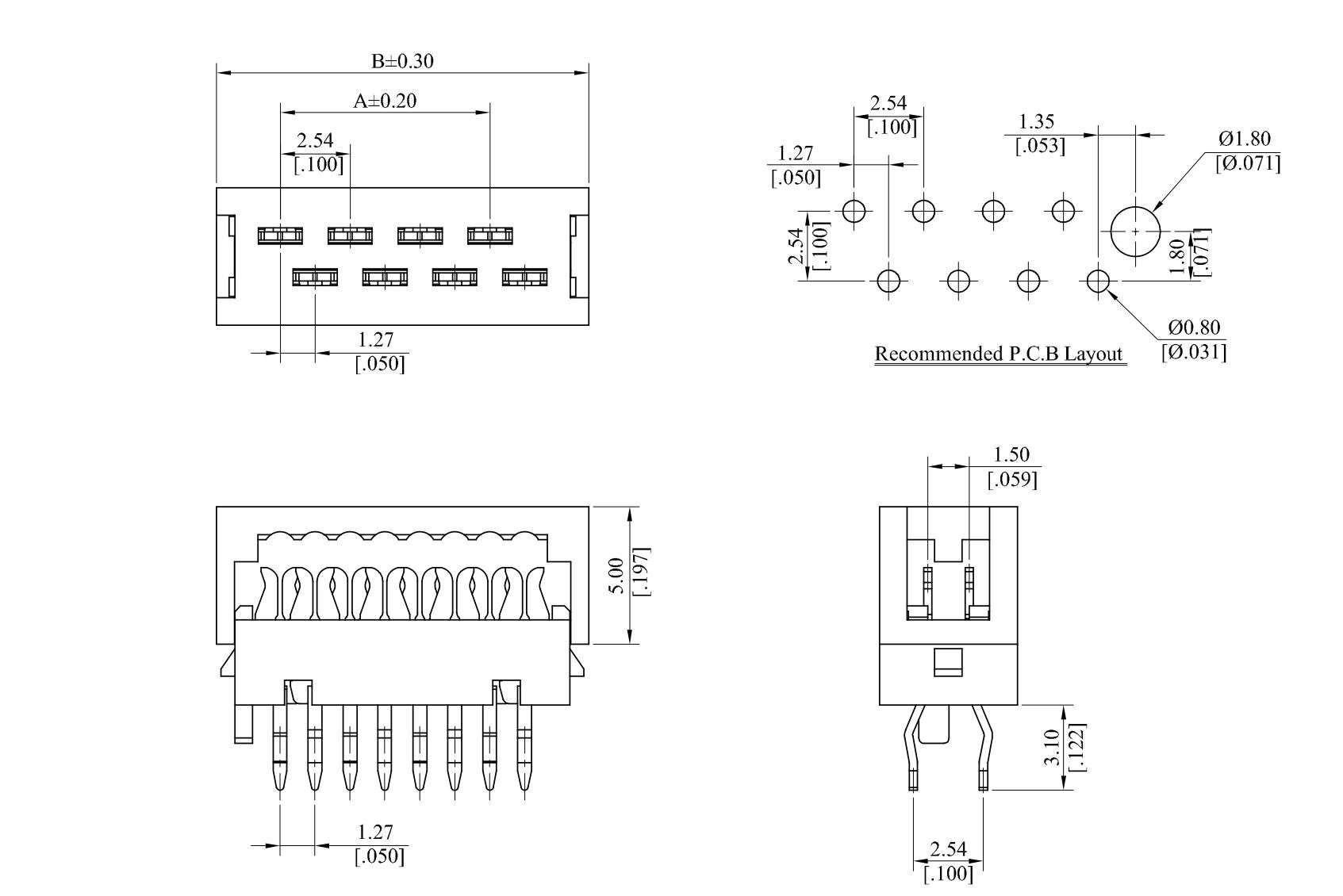

| Product | 1293P |
| Circuits | 4~24 circuits |
| Material | Thermoplastic,UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | Red |
| Formula | P/N 1293P**V*** |
| Options | - |
| Other Informaton | - |
