Telephone Jack (PCB Mount)
Specification
| Measurement | 1.27mm(.050")*2.54mm(.100") |
| Circuits | - |
| Current Rating | 1.5A AC DC |
| Voltage Rating | 125V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details
- 7621 Series PCB Mount Telephone Jack
- 7621 Series PCB Mount Telephone Jack
- 7621 Series PCB Mount Telephone Jack
- 7621 Series PCB Mount Telephone Jack
| Product | 7621 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7621-0404*1 |
| Options | - |
| Other Informaton | - |
| Product | 7621 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |

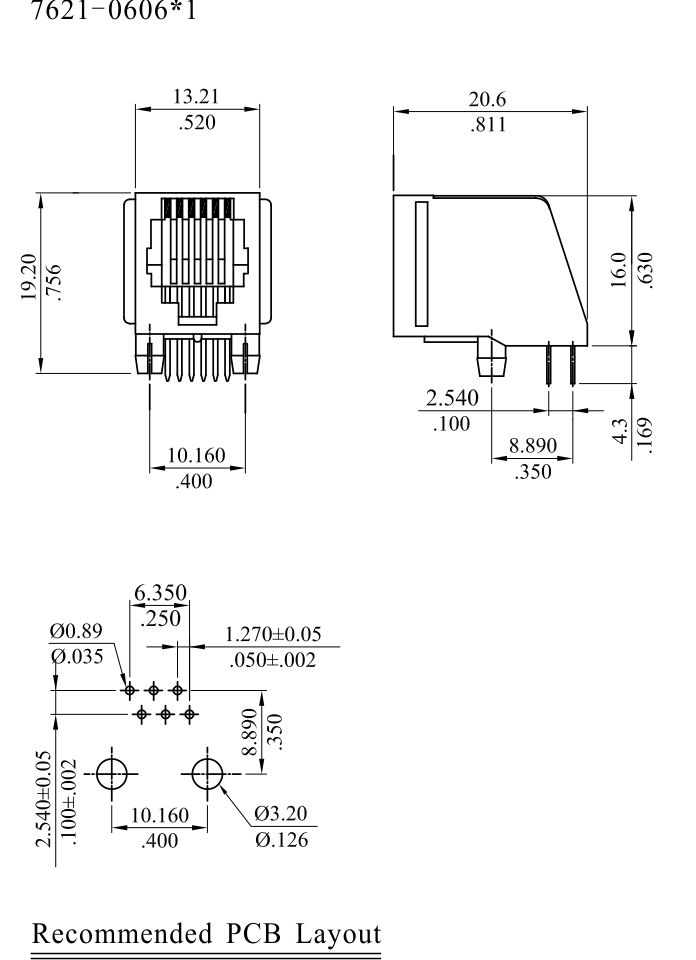

| Formula | P/N 7621-0606*1 |
| Options | - |
| Other Informaton | - |
| Product | 7621 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7621-0606*S |
| Options | - |
| Other Informaton | - |
| Product | 7621 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |

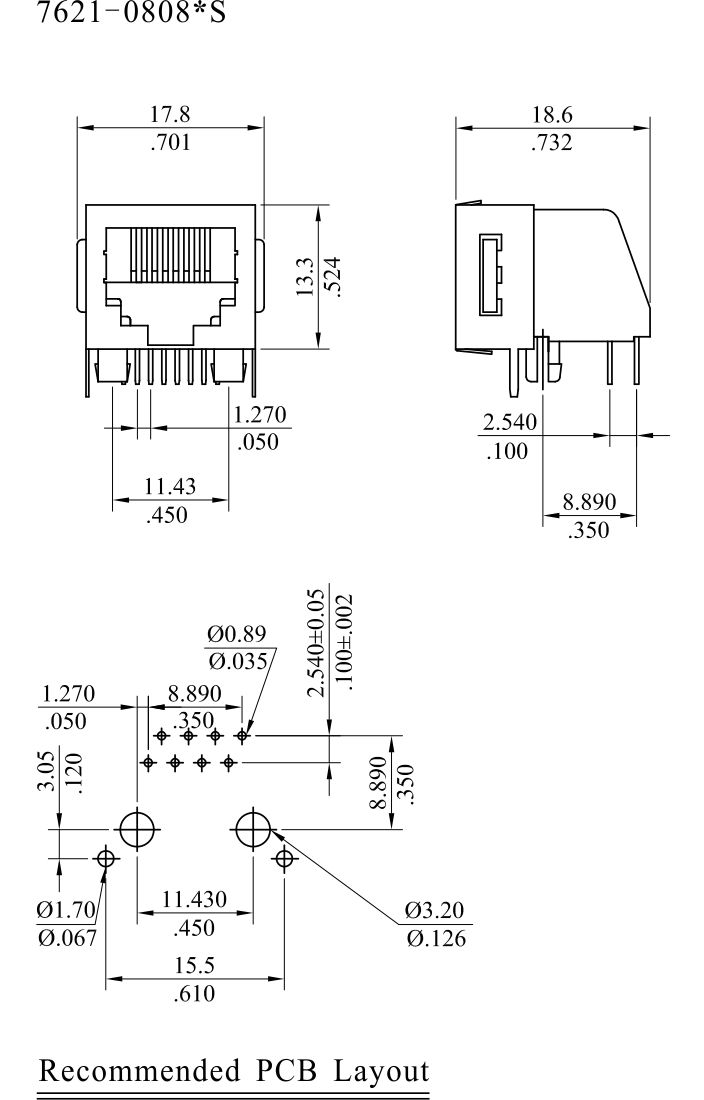

| Formula | P/N 7621-0808*S |
| Options | - |
| Other Informaton | - |
