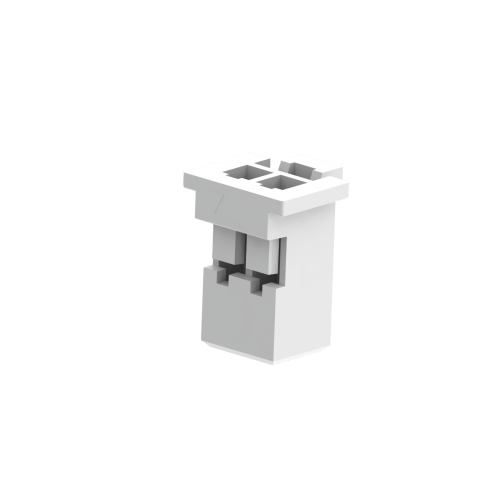

3.96mm (.156″) Wire to Board Connector
3.96mm (.156″) Wire to Board Connector
Specification
| Measurement |
3.96mm (.156") |
| Circuits |
2,3,5,6,7,8,9 circuits |
| Current Rating |
7A AC DC
|
| Voltage Rating |
250V AC DC |
| Temperature rating: |
-40℃~+105℃
|
| Contact resistance |
20mΩ max. |
| Insulation resistance |
1000MΩ min. |
| Withstanding voltage |
1500V AC/min. |
Product Details

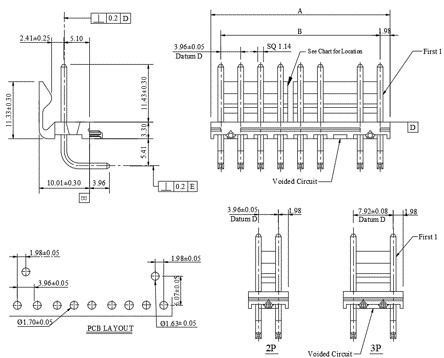

- 3972 Series 3.96mm (.156") Header Assembly Friction Lock Right Angle with Pegs
| Product |
3972P |
| Circuits |
2,3,5,6,7,8,9 circuits |
| Material |
Nylon 6/6 UL94V-0/Brass |
| Material Options |
- |
| Color Options |
- |
| Formula |
P/N 3972P**HP** |
| Options |
- |
| Other Informaton |
- |
