2.54mm (.100″) Wire to Board Connector
Specification
| Measurement | 2.54mm (.079") |
| Circuits | 2~20 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1000V AC/min. |
Standards
Product Details

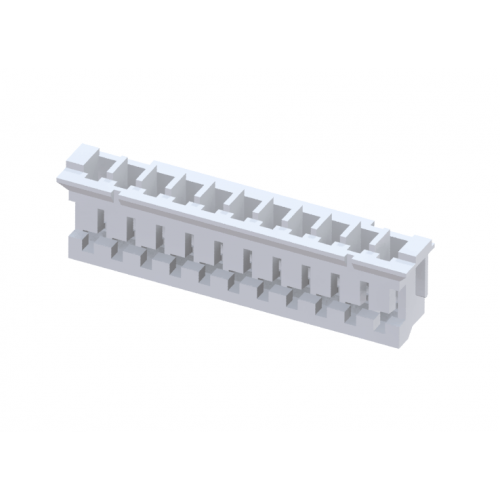

- 2530 Series 2.54mm (.100") Housing
- 2533T Crimping Terminal
- 2571 Series 2.54mm (.100") Header
- 2571 Series 2.54mm (.100") Header
| Product | 2530S |
| Circuits | 2~20 circuits |
| Material | Nylon 6/6 UL94V-0 |
| Material Options | Nylon 6/6 UL94V-0(GWT) |
| Color Options | - |
| Formula | P/N 2530S**00** |
| Options | - |
| Other Informaton | Mates with 2533 terminal |
| Product | 2533T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2533TPB0000 |
| Options | - |
| Other Informaton | Mates with 2530 housing AWG 22~28 Tin Plated 8K Pcs/Reel |
| Product | 2571P |
| Circuits | 2~20 circuits |
| Material | Nylon 6/6 UL94V-2/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2571P**V000 |
| Options | - |
| Other Informaton | Mates with 2530 housing |
| Product | 2571P |
| Circuits | 2~20 circuits |
| Material | Nylon 6/6 UL94V-2/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2571P**H000 |
| Options | - |
| Other Informaton | Mates with 2530 housing |
