2.54mm (.100″) Wire to Board Connector
Specification
| Measurement | 2.54mm (.100") |
| Circuits | 4~72 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1000V AC/min. |
Standards
Product Details
- 2665 Series 2.54mm (.100") Single Row Housing
- 2655 Series 2.54mm (.100") Dual Row Housing
- 2653T Crimping Terminal
- 2663T Crimping Terminal

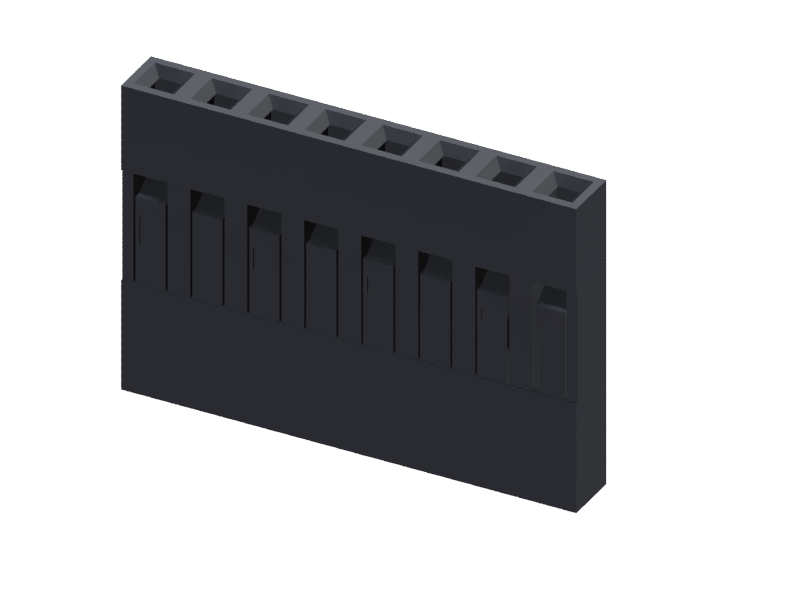

| Product | 2665S |
| Circuits | 2~40 circuits |
| Material | Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2665S**0000 |
| Options | - |
| Other Informaton | Mates with 2653&2663 terminal |

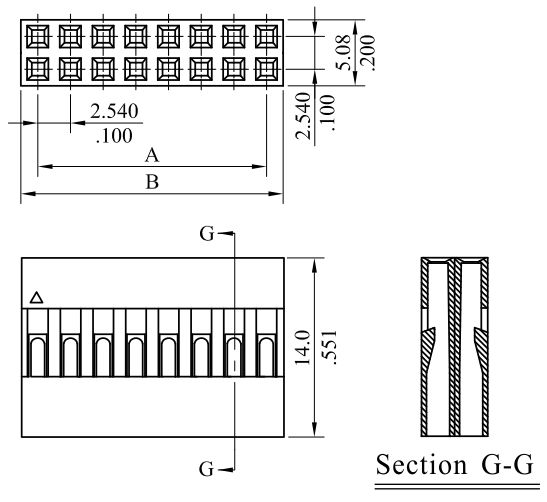

| Product | 2655S |
| Circuits | 4~72 circuits |
| Material | Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2655S**0000 |
| Options | - |
| Other Informaton | Mates with 2653&2663 terminal |
| Product | 2653T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2653TPB0000 |
| Options | - |
| Other Informaton | Mates with 2663T AWG 22~28 Tin Plated 8K Pcs/Reel |
| Product | 2663T |
| Circuits | - |
| Material | Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2663T*B0000 |
| Options | - |
| Other Informaton | Mates with 2653T AWG 22~28 Tin Plated 10K Pcs/Reel |
