2.54mm (.100″) Wire to Board Connector
Specification
| Measurement | 2.54mm (.100") |
| Circuits | 4~80 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 800V AC/min. |
Standards
Product Details

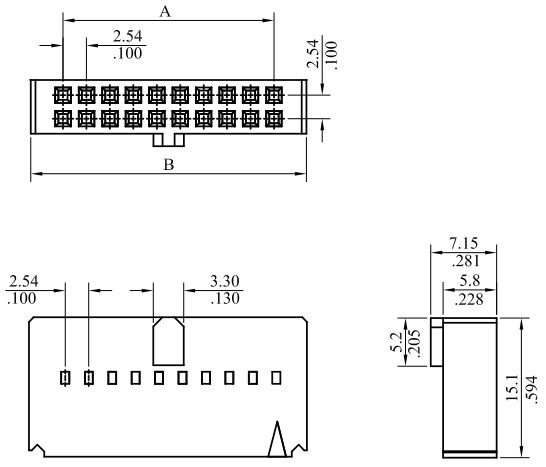

- 2871 Series 2.54mm (.100") Dual Row Housing
- 2871T Crimping Terminal
| Product | 2871S |
| Circuits | 4~80 circuits |
| Material | Polyester UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2871S**000P |
| Options | - |
| Other Informaton | Mates with 2871 terminal |
| Product | 2871T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2871T***F00 |
| Options | - |
| Other Informaton | Mates with 2871S AWG 24~28 Tin Plated/Gold Plated 15K Pcs/Reel |
