2.54mm (.100″) Board to Board Connector
Specification
| Measurement | 2.54mm (.100") |
| Circuits | 3~99 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

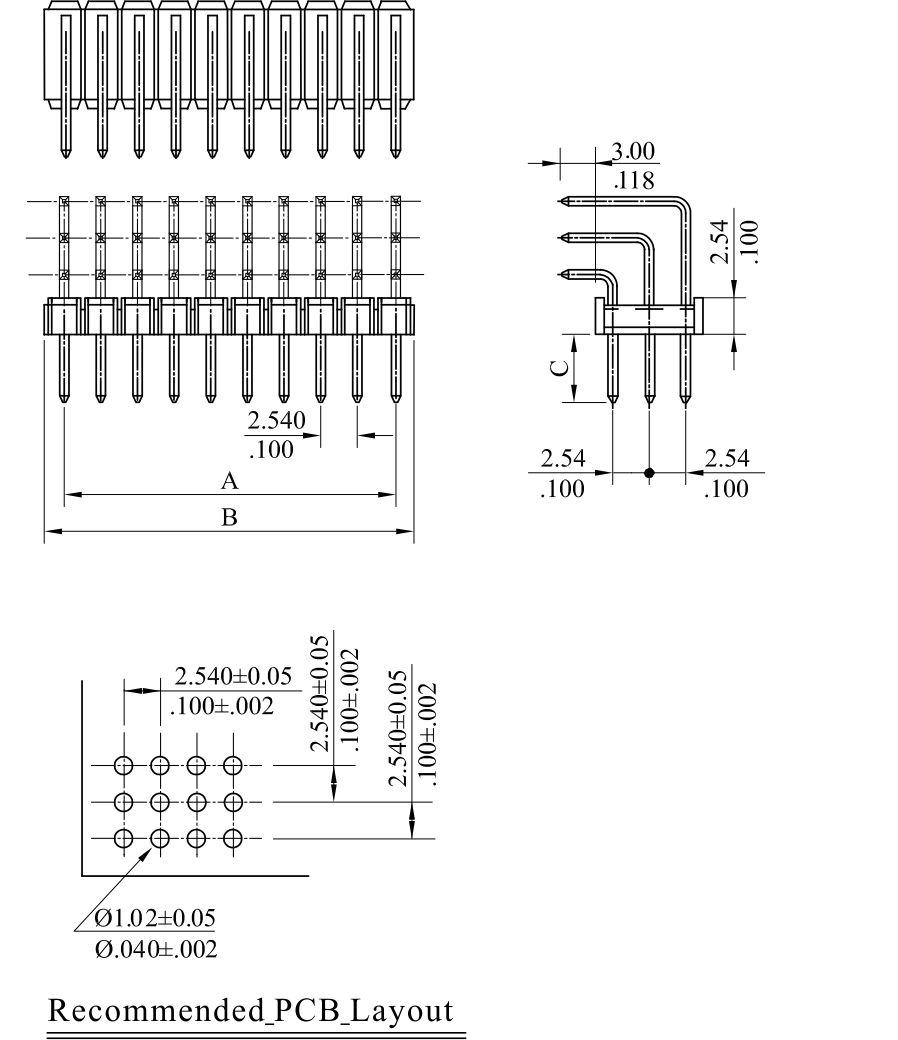

- 3559 Series 2.54mm (.100") Triple Row Breakaway Right Angel Header
| Product | 3559P |
| Circuits | 3~99 circuits |
| Material | Thermoplastic UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 3559P****00 |
| Options | Other PIN lengths can be customized according to requirement |
| Other Informaton | - |
