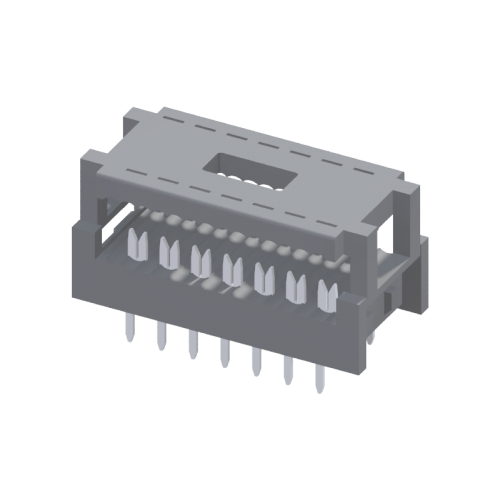

2.00mm (.079″) IDC Connector
Specification
| Measurement | 2.00mm (.079") |
| Circuits | 6~64 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 30mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

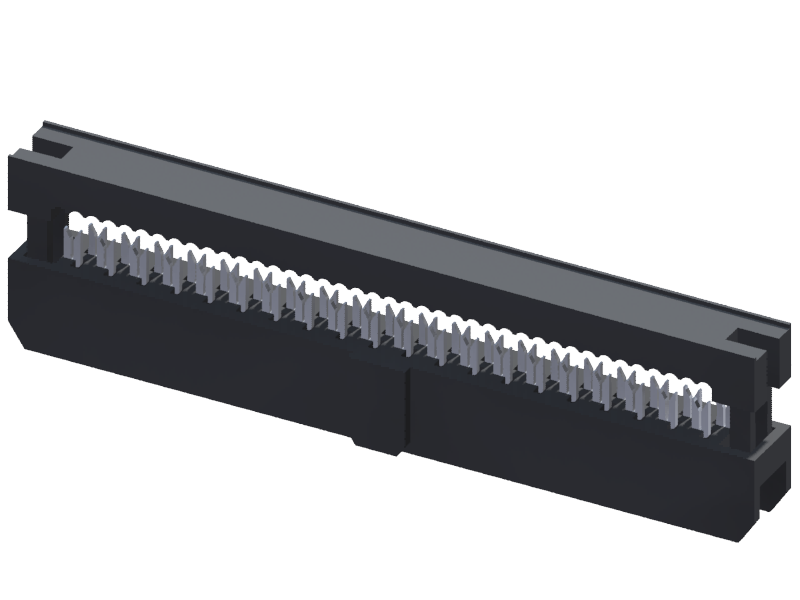

- 2045 Series 2.00mm(.079")Socket
| Product | 2045S |
| Circuits | 6~64 circuits |
| Material | Thermoplastic UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2045S**U000 |
| Options | - |
| Other Informaton | Mates with 2046P |
