2.00mm (.079″) Board to Board Connector
Specification
| Measurement | 2.00mm (.079") |
| Circuits | 2~80circuits |
| Current Rating | 2A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

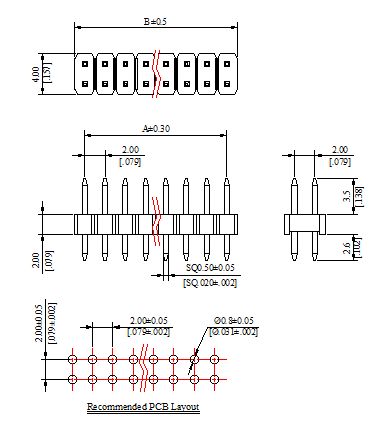

- 2028 Series 2.00mm (.097") Dual Row Breakaway Header
- 2028 Series 2.00mm (.097") Dual Row Breakaway Header
- 2028 Series 2.00mm (.097") Dual Row Breakaway SMT Header
| Product | 2028P |
| Circuits | 2~80circuits |
| Material | Nylon 6T UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2028P**V*00 |
| Options | Other PIN lengths can be customized according to requirement |
| Other Informaton | Mates with 2042S,2066S |
| Product | 2028P |
| Circuits | 2~80circuits |
| Material | Nylon 6T UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2028P**H*00 |
| Options | Other PIN lengths can be customized according to requirement |
| Other Informaton | Mates with 2042S,2066S |
| Product | 2028P |
| Circuits | 2~80circuits |
| Material | Nylon 6T UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2028P**M*00 |
| Options | Other PIN lengths can be customized according to requirement |
| Other Informaton | Mates with 2042S,2066S |
