1000P 1.00mm (.039″) Wire to Board Connector
Specification
| Measurement | 1.00mm (.039") |
| Circuits | 8,14,20,30 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 50V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

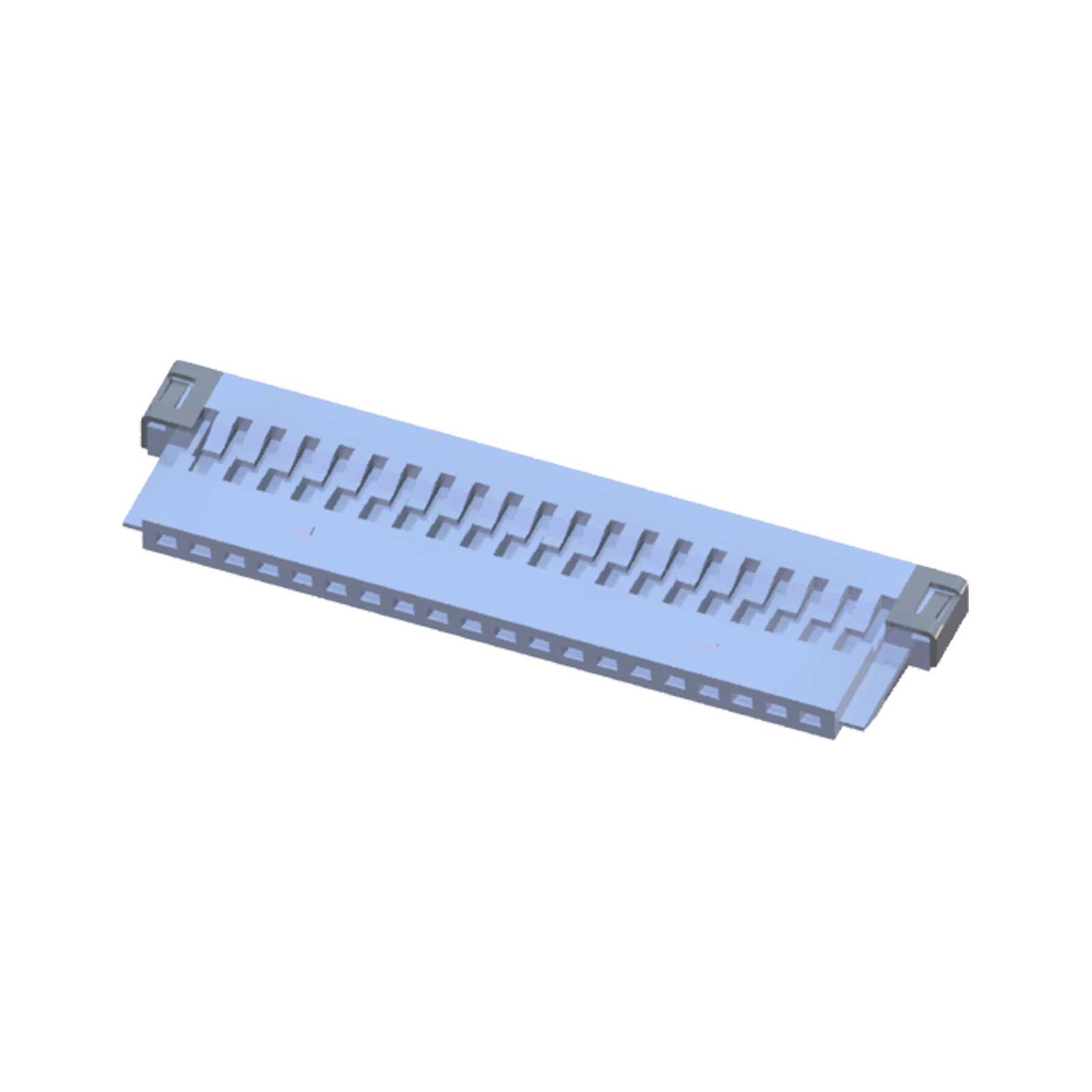

- 1000 Series 1.00mm (.039") Housing

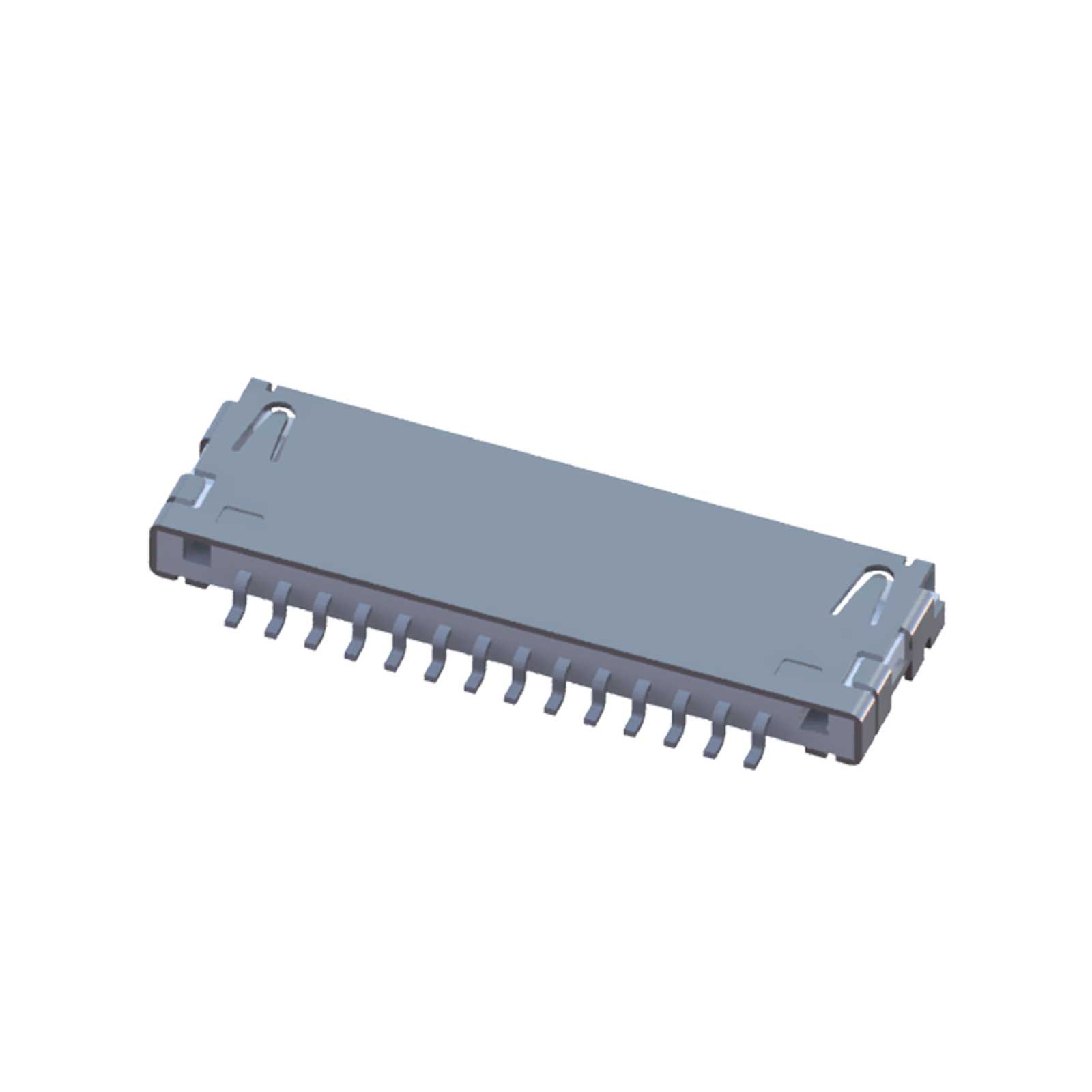

- 1000S Series 1.00mm (.039") Housing
- 1000T Series 1.00mm (.039") Housing

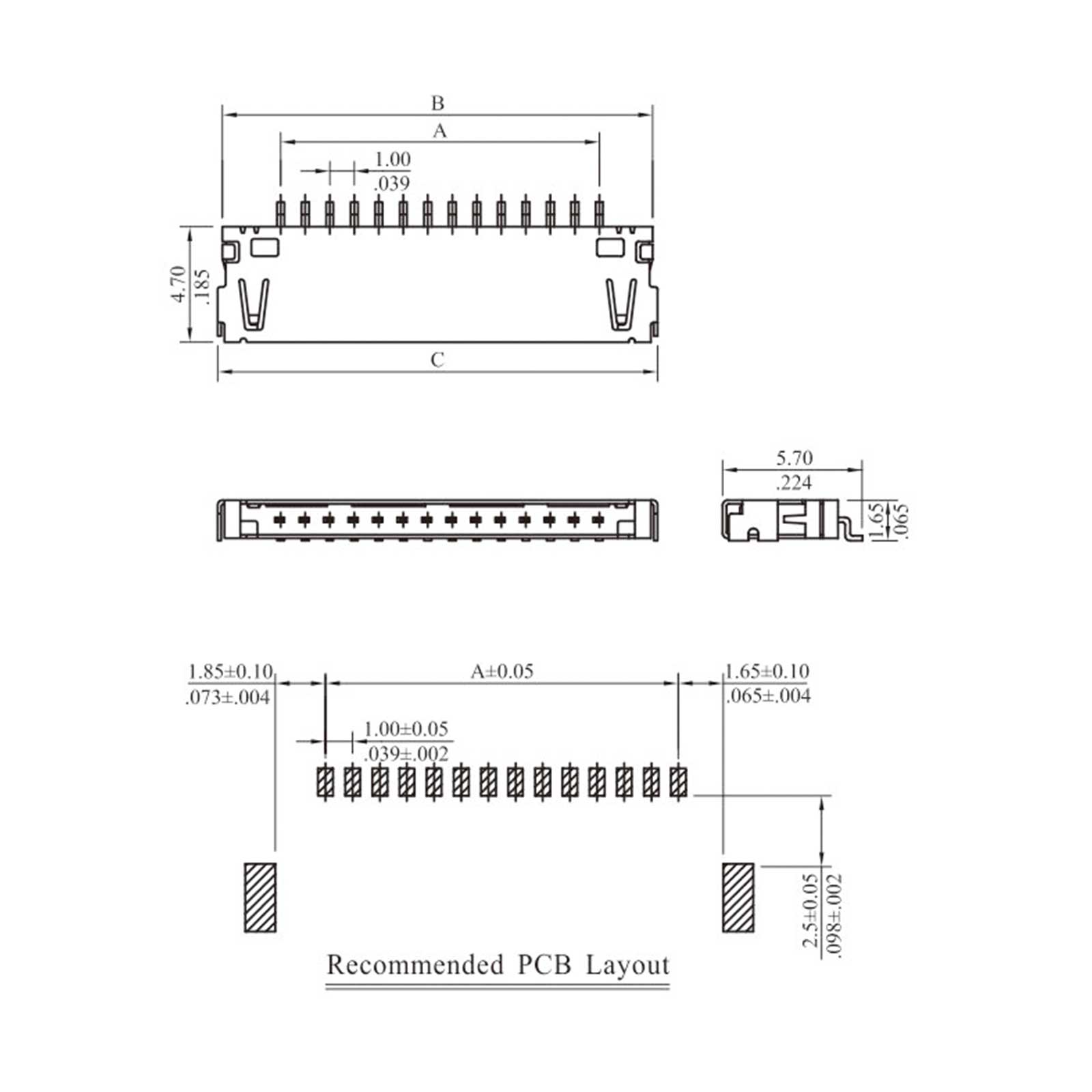

| Product | 1000P |
| Circuits | 8,14,20,30 circuits |
| Material | High temperature thermoplastic UL94V-0/Phosphor Bronze |
| Material Options | |
| Color Options | |
| Formula | P/N 1000P**MHU0 |
| Options | |
| Other Informaton | Mates with 1000S |

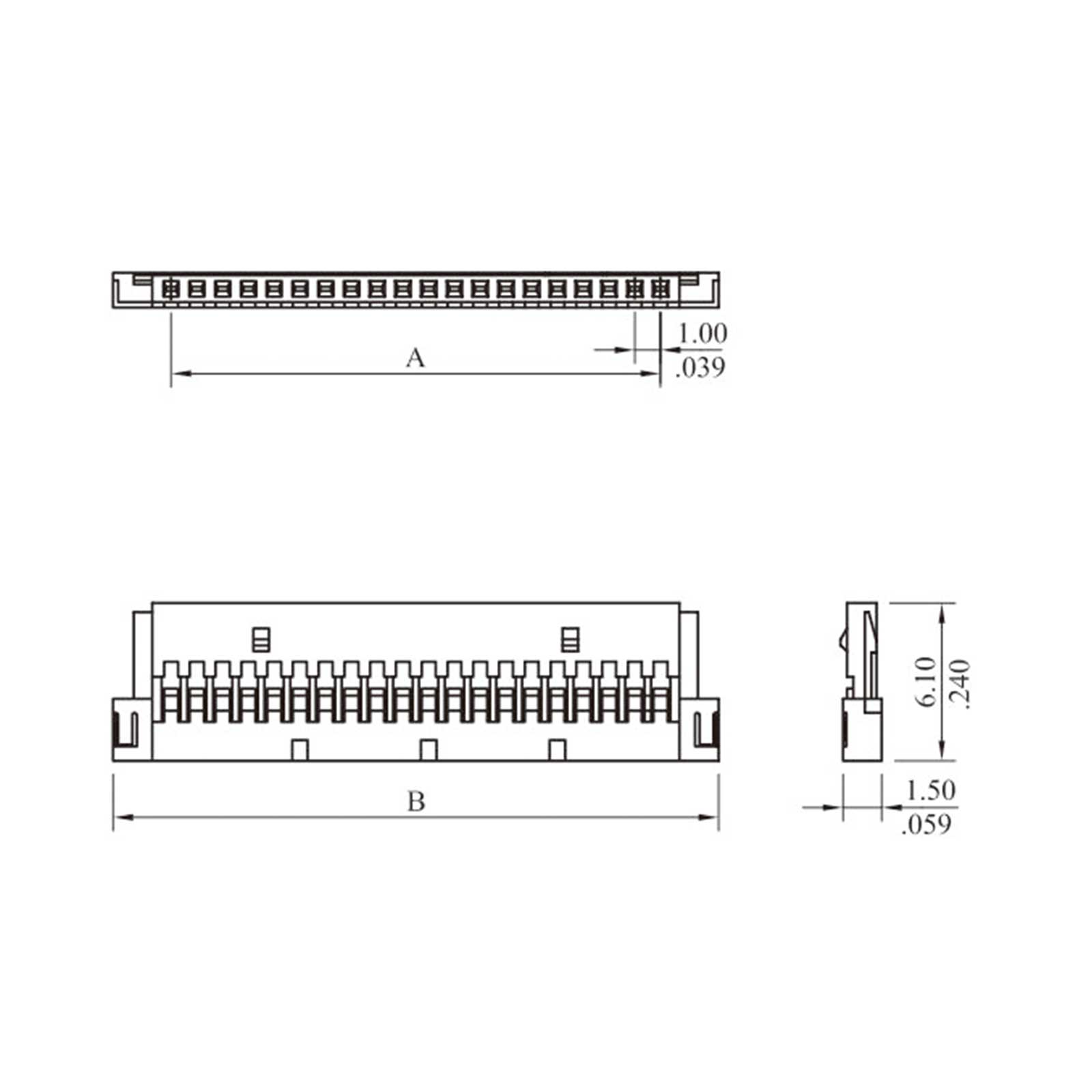

| Product | 1000S |
| Circuits | 8,14,20,30 circuits |
| Material | Nylon 6/6 UL94V-0 |
| Material Options | |
| Color Options | |
| Formula | P/N 1000S**0000 |
| Options | |
| Other Informaton | Mates with 1000 terminal |

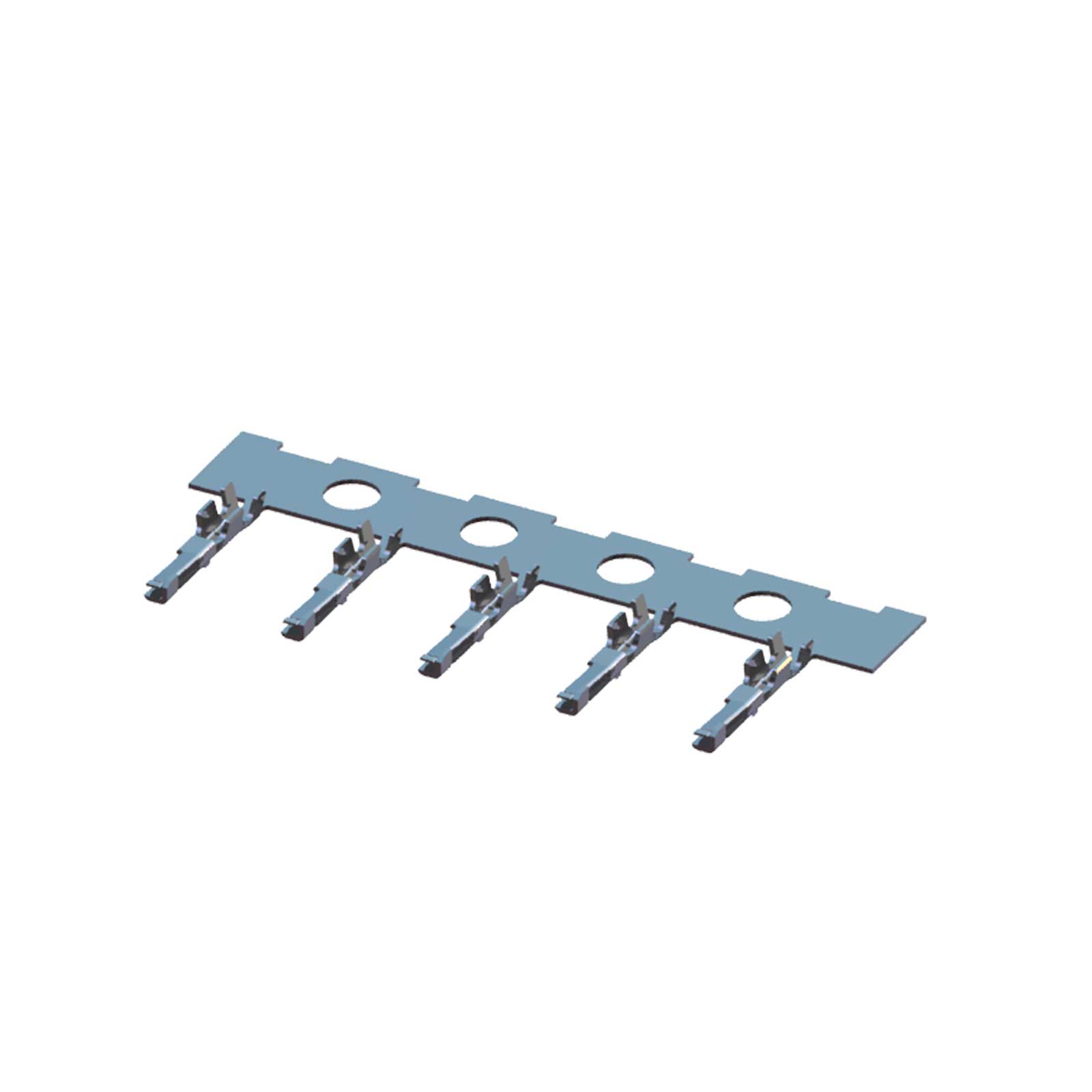

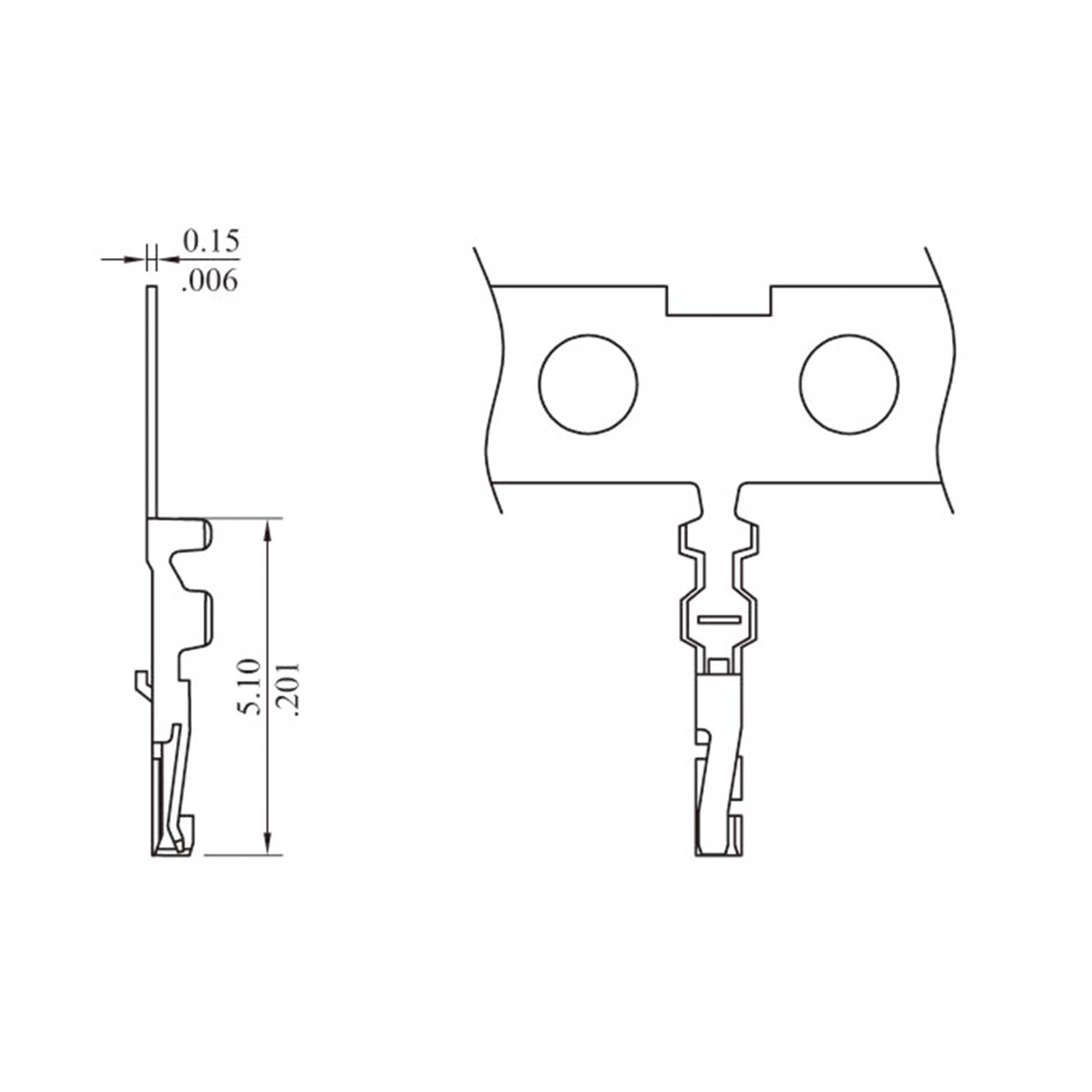

| Product | 1000T |
| Circuits | |
| Material | Phosphor Bronze |
| Material Options | |
| Color Options | |
| Formula | P/N 1000TPBU000 |
| Options | |
| Other Informaton | Mates with 1000S Wire range: AWG 28~32 Plating: Gold flash Package:15K Pcs/Reel |
