1.27mm (.050″) Board to Board Connector
Specification
| Measurement | 1.27mm (.050") |
| Circuits | 2~80 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -40℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details

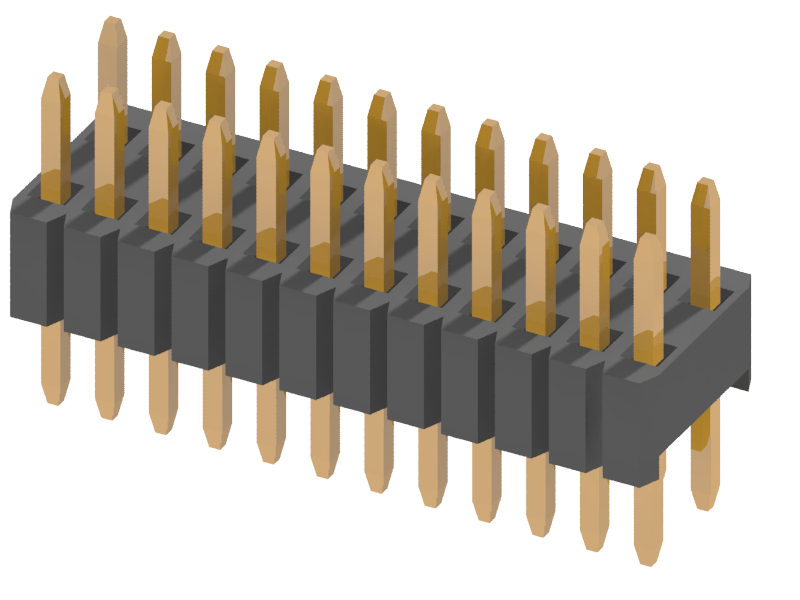

- 1371 Series 1.27mm (.050") Dual Row Breakaway Header
| Product | 1371P |
| Circuits | 2~80 circuits |
| Material | Nylon 6T UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1371P***000 |
| Options | Other PIN lengths can be customized according to requirement |
| Other Informaton | Mates with 1376S,1377S |
