1.25mm (.049″) Wire to Board Connector
Specification
| Measurement | 1.25mm (.049") |
| Circuits | 2～20 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 125V AC DC |
| Temperature rating: | -25℃～+85℃ |
| Contact resistance | 30mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details
- 1252 Series 1.25mm (.049") Single Row Housing

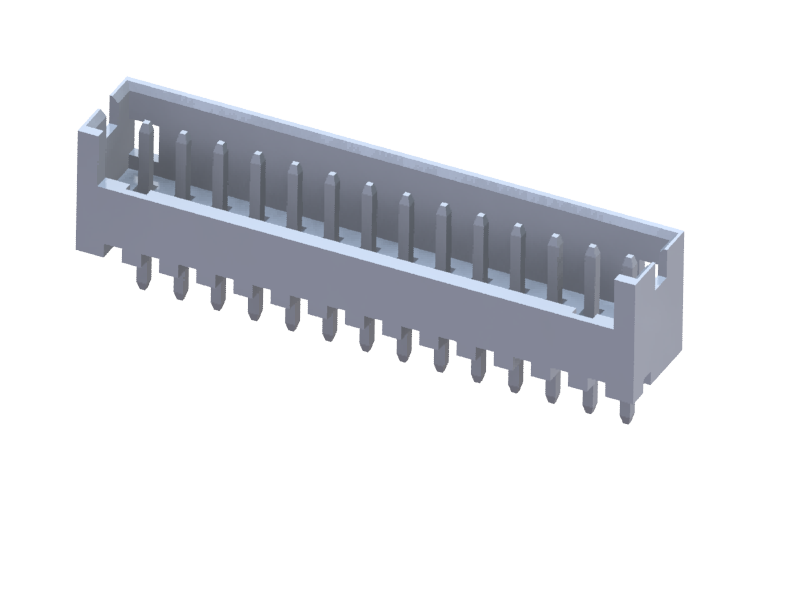

- 1252 Series 1.25mm (.049") Single Row Header V Type

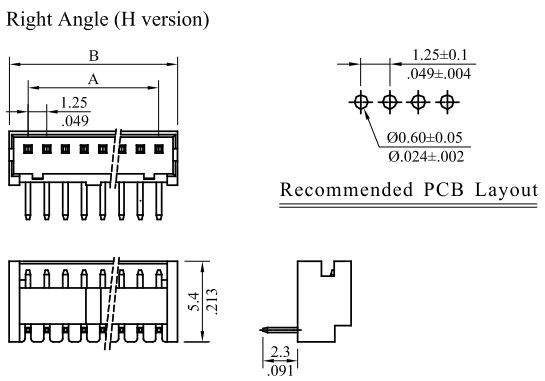

- 1252 Series 1.25mm (.049") Single Row Header H Type
- 1252 Series 1.25mm (.049") Single Row Header SMT Type V Type
- 1252 Series 1.25mm (.049") Single Row Header SMT Type H Type
| Product | 1252S |
| Circuits | 2～20 circuits |
| Material | Polyester UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1252S**0000 |
| Options | - |
| Other Informaton | Mates with 1261T |
| Product | 1252P |
| Circuits | 2～20 circuits |
| Material | Polyester UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1252P**V00* |
| Options | - |
| Other Informaton | Mates with 1252S |
| Product | 1252P |
| Circuits | 2～20 circuits |
| Material | High Temperature Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1252P**H000 |
| Options | - |
| Other Informaton | Mates with 1252S |
| Product | 1252P |
| Circuits | 2～20 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1252P**MV00 |
| Options | - |
| Other Informaton | Mates with 1252S |
| Product | 1252P |
| Circuits | 2～20 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1252P**MH00 |
| Options | - |
| Other Informaton | Mates with 1252S |
