1.25mm (.049″) Wire to Board Connector
Specification
| Measurement | 1.25mm (.049") |
| Circuits | 2~15 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 125V AC DC |
| Temperature rating: | -40℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 250V AC/min. |
Standards
Product Details
- 1254 Series 1.25mm (.049") Housing
- 1254T Crimping Terminal
- 1254 Series 1.25mm(.049") Header
- 1254 Series 1.25mm(.049") Header
- 1254 Series 1.25mm(.049") Header
- 1254 Series 1.25mm(.049") Header

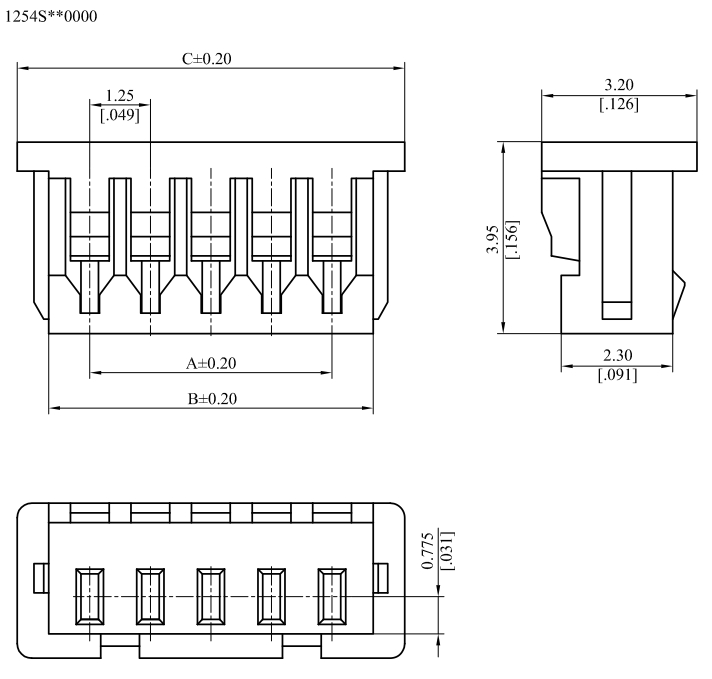

| Product | 1254S |
| Circuits | 2~15 circuits |
| Material | Thermoplastic UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254S**0000 |
| Options | - |
| Other Informaton | Mates with 1254 terminal |
| Product | 1254T |
| Circuits | - |
| Material | Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254TPB0000 |
| Options | - |
| Other Informaton | Mates with 1254 housing AWG 28~32 Tin Plated 15K Pcs/Reel |

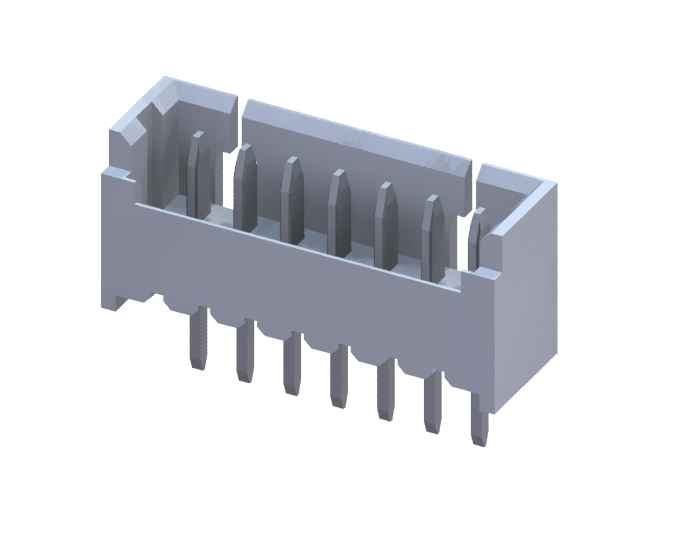

| Product | 1254P |
| Circuits | 2~15 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254P**V000 |
| Options | - |
| Other Informaton | Mates with 1254 housing |
| Product | 1254P |
| Circuits | 2~15 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254P**H000 |
| Options | - |
| Other Informaton | Mates with 1254 housing |

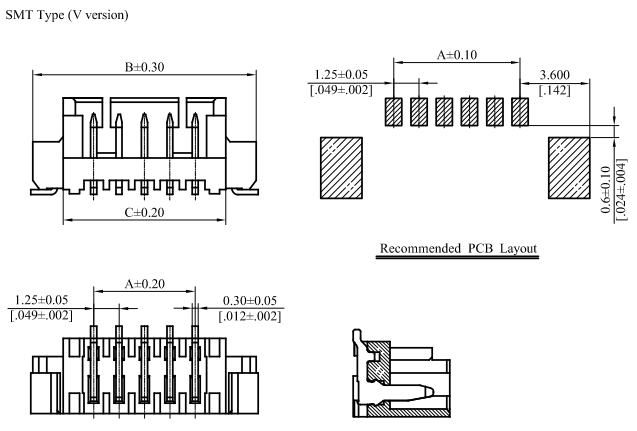

| Product | 1254P |
| Circuits | 2~15 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254P**MV00 |
| Options | - |
| Other Informaton | Mates with 1254 housing |

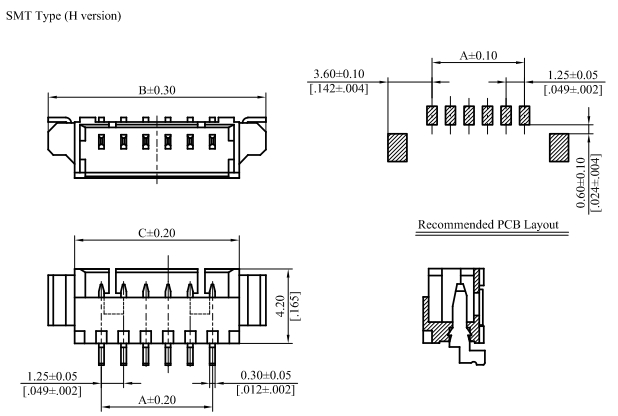

| Product | 1254P |
| Circuits | 2~15 circuits |
| Material | High Temperature Thermoplastic UL94V-0/Copper Alloy |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1254P**MH00 |
| Options | - |
| Other Informaton | Mates with 1254 housing |
