1.00mm (.039″) Wire to Board Connector
Specification
| Measurement | 1.00mm (.039") |
| Circuits | 20,30,40,50 circuits |
| Current Rating | 1A AC DC |
| Voltage Rating | 50V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details
- 1020 Series 1.00mm (.039") Dual Row Housing

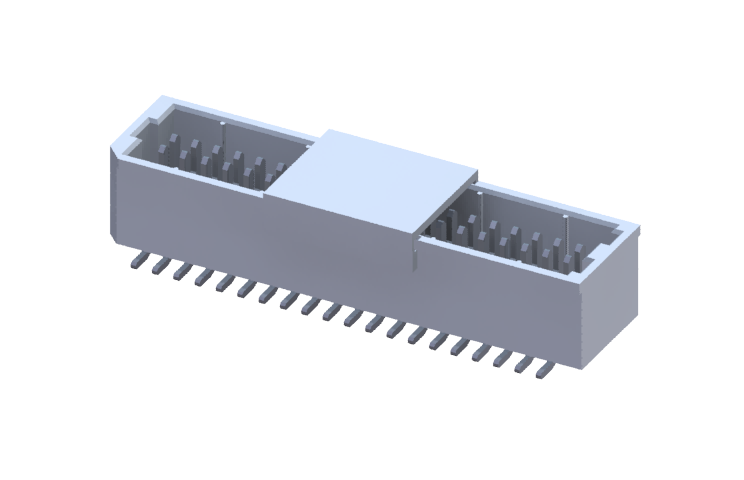

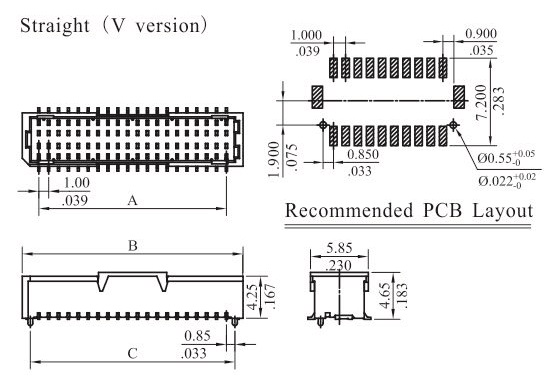

- 1020 Series 1.00mm (.039") Dual Row Header SMT Type V Type
- 1020 Series 1.00mm (.039") Dual Row Header SMT Type H Type
| Product | 1020S |
| Circuits | 20,30,40,50 circuits |
| Material | polyester UL94V-0 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1020S**0000 |
| Options | - |
| Other Informaton | Mates with 1010 terminal |
| Product | 1020P |
| Circuits | 20,30,40,50 circuits |
| Material | High temperature thermoplastic UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1020P**M*00 |
| Options | - |
| Other Informaton | Mates with 1020S |
| Product | 1020P |
| Circuits | 20,30,40,50 circuits |
| Material | High temperature thermoplastic UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 1020P**MH00 |
| Options | - |
| Other Informaton | Mates with 1020S |
