0.5mm(.020″)FFC/FPC Connector
Specification
| Measurement | 0.5mm (.020") |
| Circuits | 4~50circuits |
| Current Rating | 0.5A AC DC |
| Voltage Rating | 30V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | 250V AC/min. |
Standards
Product Details

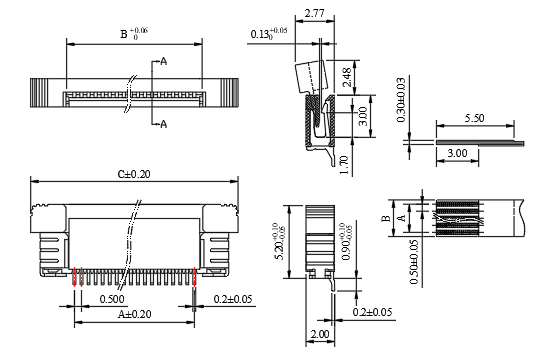

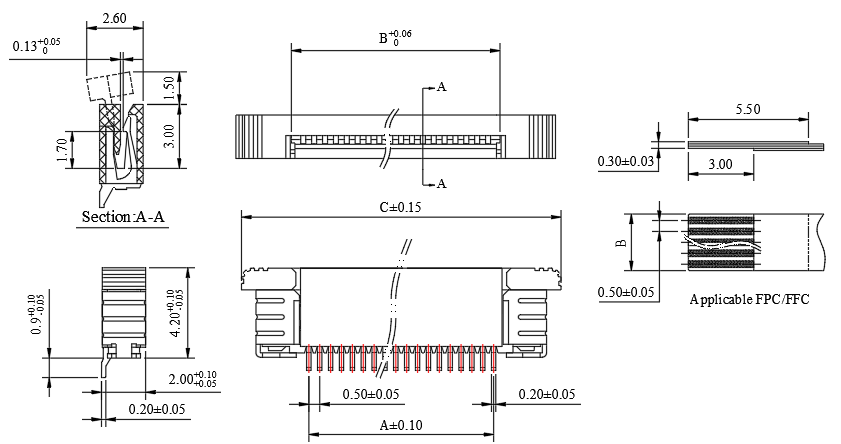

- 0503 Series 0.50mm(.020")Side Entry ZIF FFC/FPC Connector
- 0503 Series 0.50mm(.020")Side Entry ZIF FFC/FPC Connector
| Product | 0503S |
| Circuits | 4~39 circuits |
| Material | Thermoplatic UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |

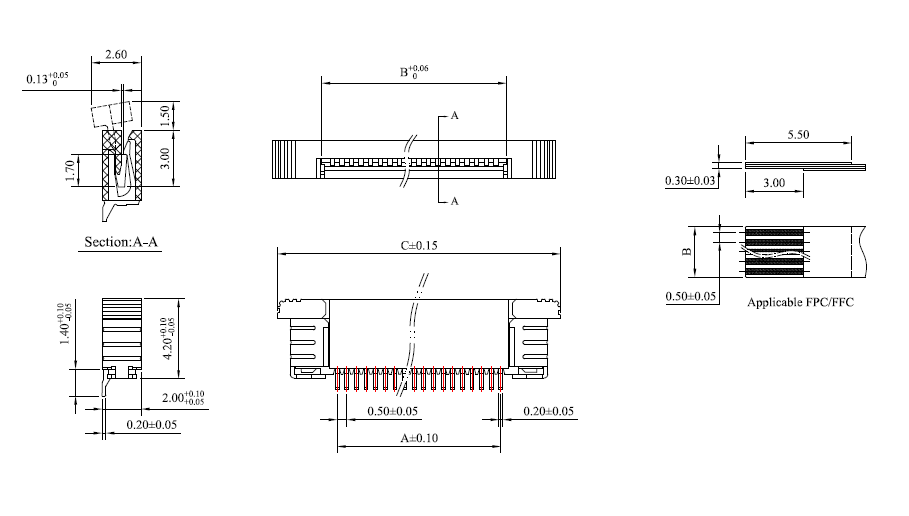

| Formula | P/N 0503S***M0* |
| Options | - |
| Other Informaton | - |
| Product | 0503S |
| Circuits | 40~50 circuits |
| Material | Thermoplatic UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |

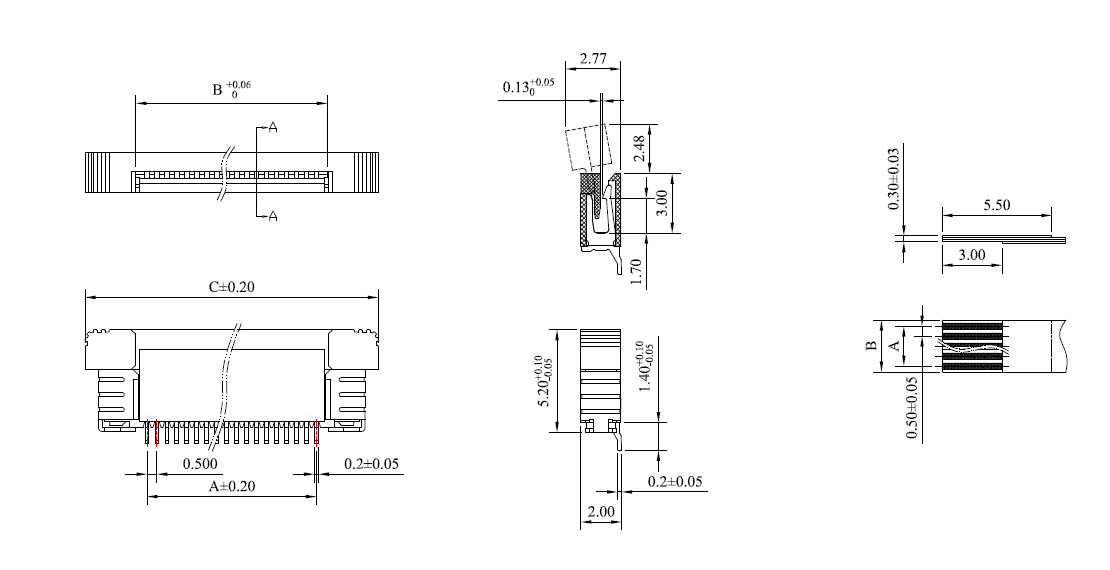

| Formula | P/N 0503S***MB* |
| Options | - |
| Other Informaton | - |
