5.03mm (.158″) Wire to Wire Connector
Specification
| Measurement | 5.03mm (.158") |
| Circuits | 2~15 circuits |
| Current Rating | 5~14A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+85℃ |
| Contact resistance | 10mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1500V AC/min. |
Standards
Product Details
- 5033 Series 5.03mm (.158") Housing
- 5033 Series 5.03mm (.158") Housing

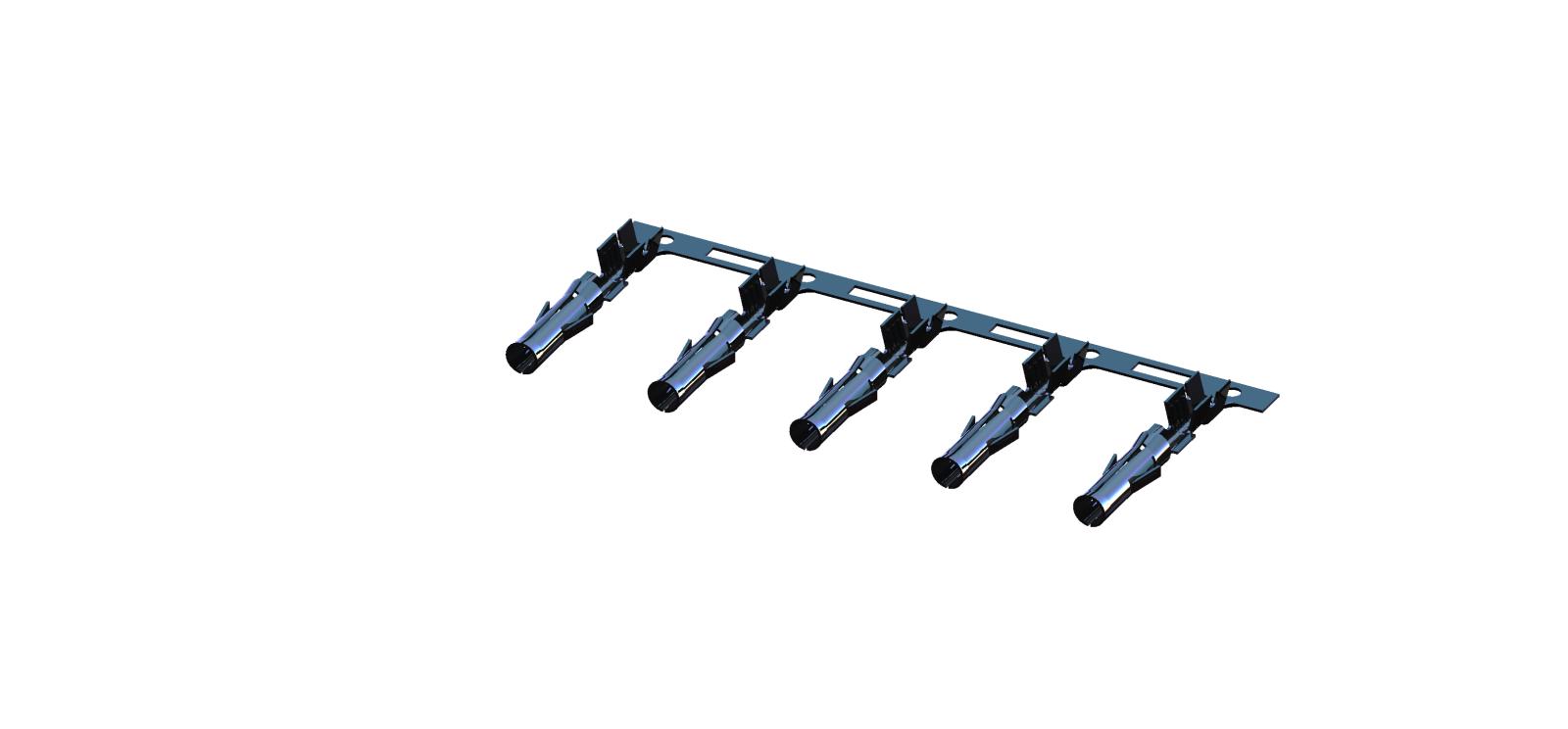

- 5033T Crimping Terminal

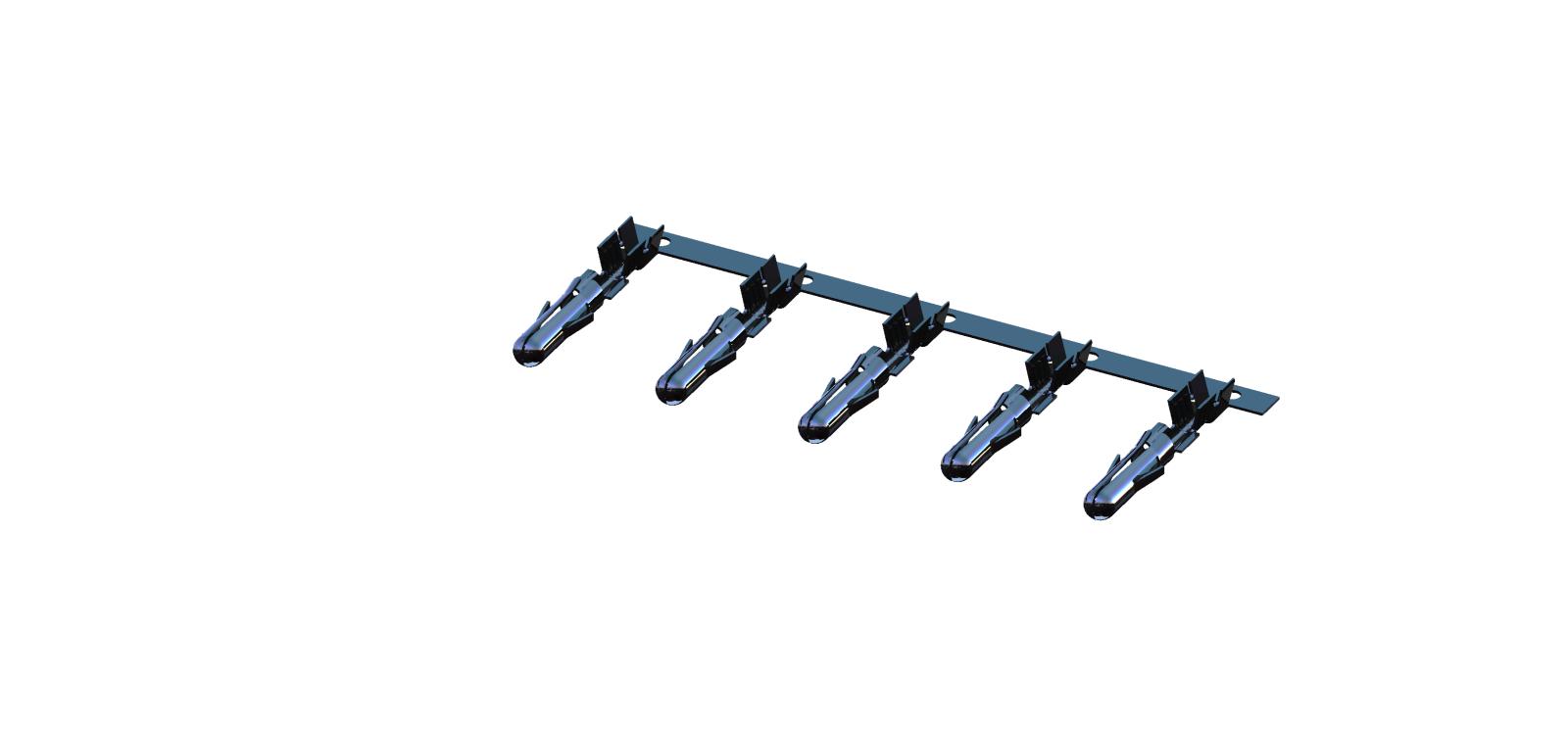

- 5033T Crimping Terminal
| Product | 5033S |
| Circuits | 2~15 circuits |
| Material | Thermoplastic UL94V-2 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5033S**MS*0 |
| Options | - |
| Other Informaton | Mates with 5033 terminal |
| Product | 5033S |
| Circuits | 2~15 circuits |
| Material | Thermoplastic UL94V-2 |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5033S**FS*0 |
| Options | - |
| Other Informaton | Mates with 5033 terminal |
| Product | 5033T |
| Circuits | - |
| Material | Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5033TCB0F00 |
| Options | - |
| Other Informaton | Mates with 5033S AWG 18~24 Tin Plated 5K Pcs/Reel |
| Product | 5033T |
| Circuits | - |
| Material | Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 5033TCB0M00 |
| Options | - |
| Other Informaton | Mates with 5033S AWG 18~24 Tin Plated 5K Pcs/Reel |
