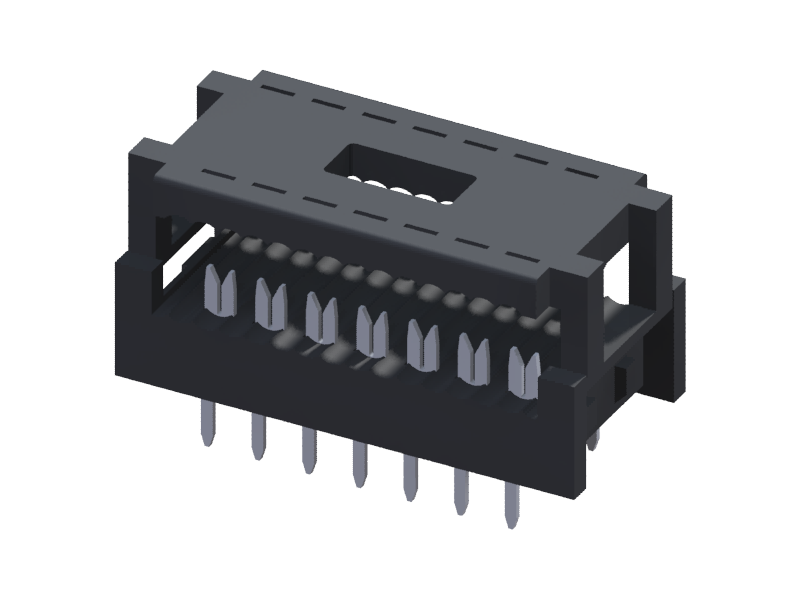

2.54mm*2.54mm (.100″*.100″) Slim In-Line Connector For 1.27mm (.050″) Center Flat Cable
Specification
| Measurement | 2.54mm (.100") |
| Circuits | 10,14,16,18,20,24,26,28,32,34,36,40 circuits |
| Current Rating | 3A AC DC |
| Voltage Rating | 250V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 500V AC/min. |
Standards
Product Details
| Product | 2615S |
| Circuits | 10,14,16,18,20,24,26,28,32,34,36,40 circuits |
| Material | Thermoplastic UL94V-0/Brass |
| Material Options | - |
| Color Options | - |
| Formula | P/N 2615S***001 |
| Options | - |
| Other Informaton | - |
