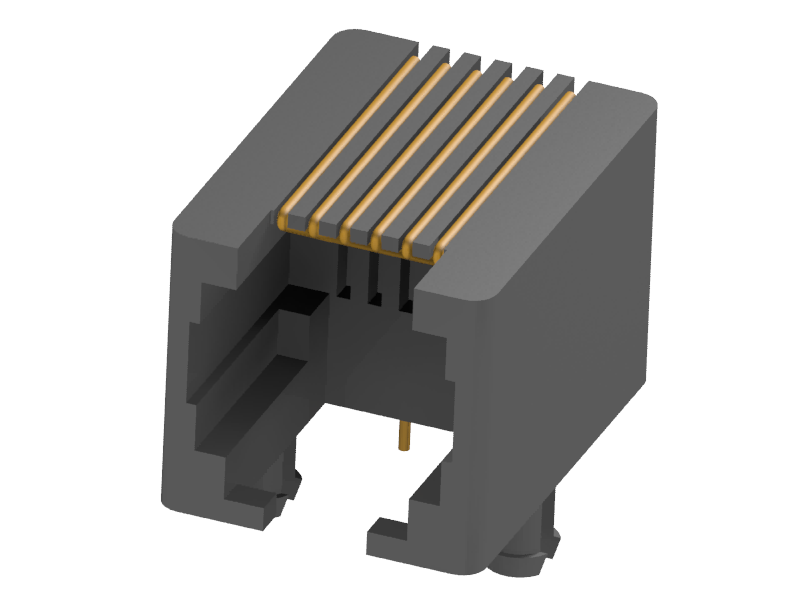

Telephone Jack (PCB Mount)
Specification
| Measurement | 7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type |
| Circuits | - |
| Current Rating | 1.5A AC DC |
| Voltage Rating | 125V AC DC |
| Temperature rating: | -25℃~+105℃ |
| Contact resistance | 20mΩ max. |
| Insulation resistance | 1000MΩ min. |
| Withstanding voltage | 1000V AC/min. |
Standards
Product Details
- 7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type
- 7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type
| Product | 7630 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |

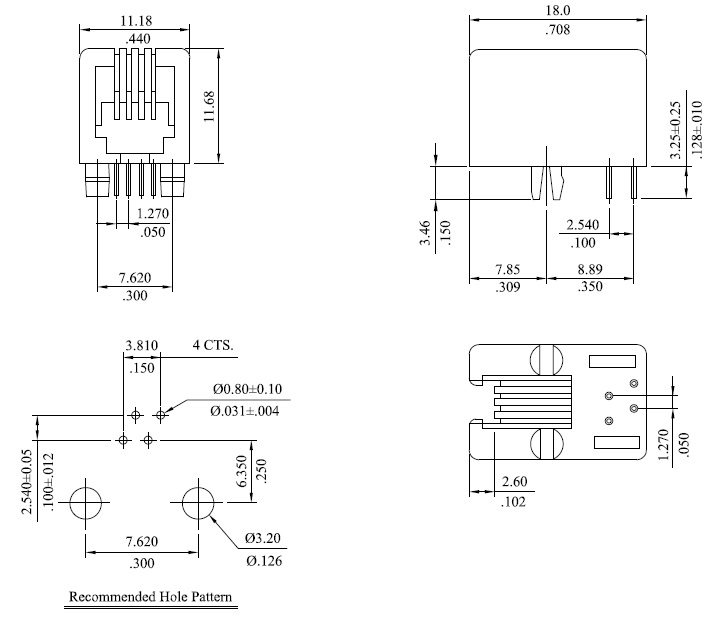

| Formula | P/N 7630-0404** |
| Options | - |
| Other Informaton | - |
| Product | 7630 |
| Circuits | - |
| Material | Polyester UL94V-0/Phosphor Bronze |
| Material Options | - |
| Color Options | - |
| Formula | P/N 7630-0606** |
| Options | - |
| Other Informaton | - |
